VLX 150
Heavy-Duty Sliding

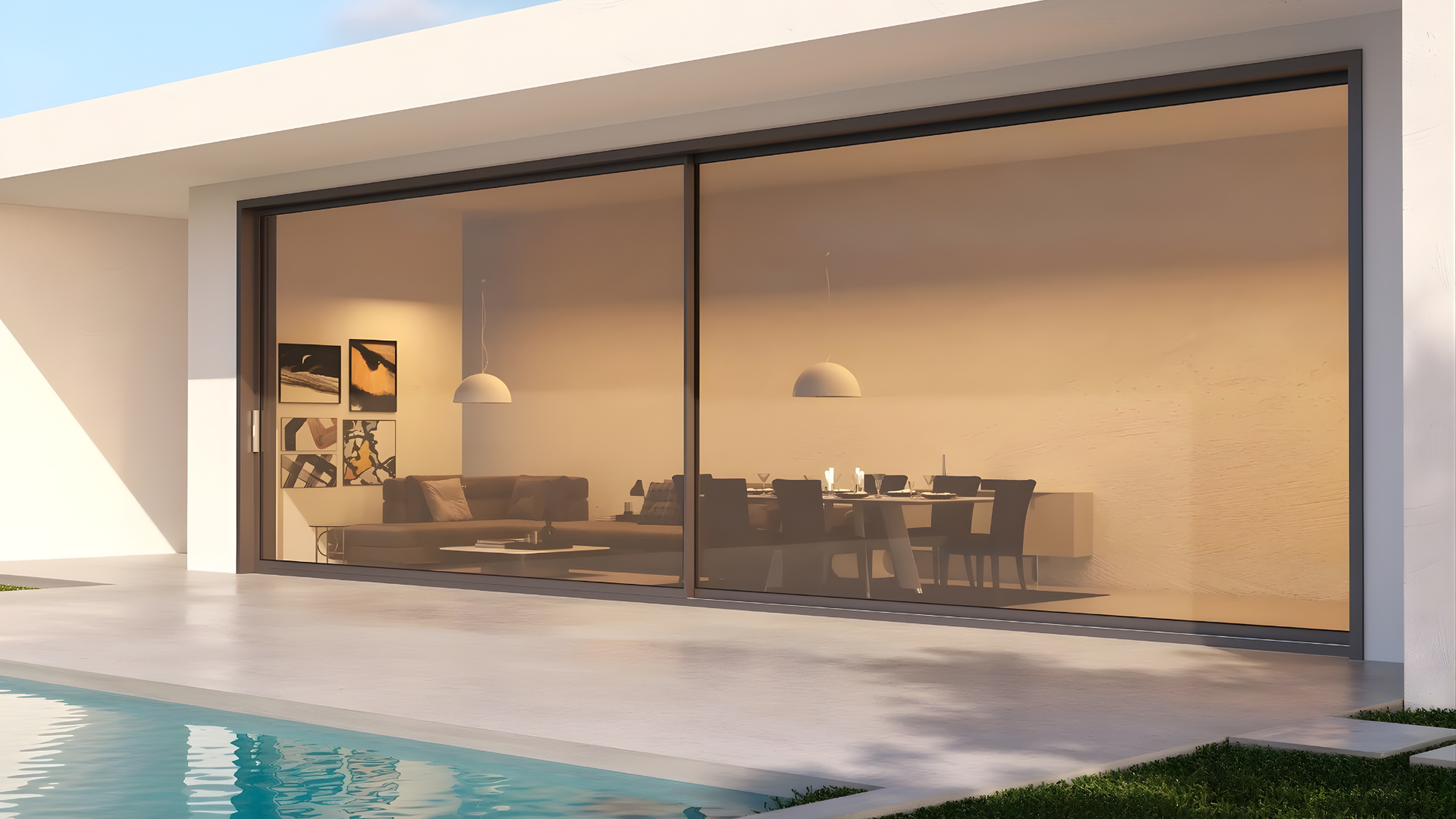

Engineered for smooth, effortless operation, the ViewLux MT150 Sliding Door opens wide to connect interior spaces with the outdoors. Ideal for patio-facing living and dining areas, it provides expansive views, structural strength, and consistent energy efficiency when closed.
water proof
Heat Insulation
Prevent Mist
Airtightness
Sound Lock
Wind
Resistance
Detailed Images
Product Features

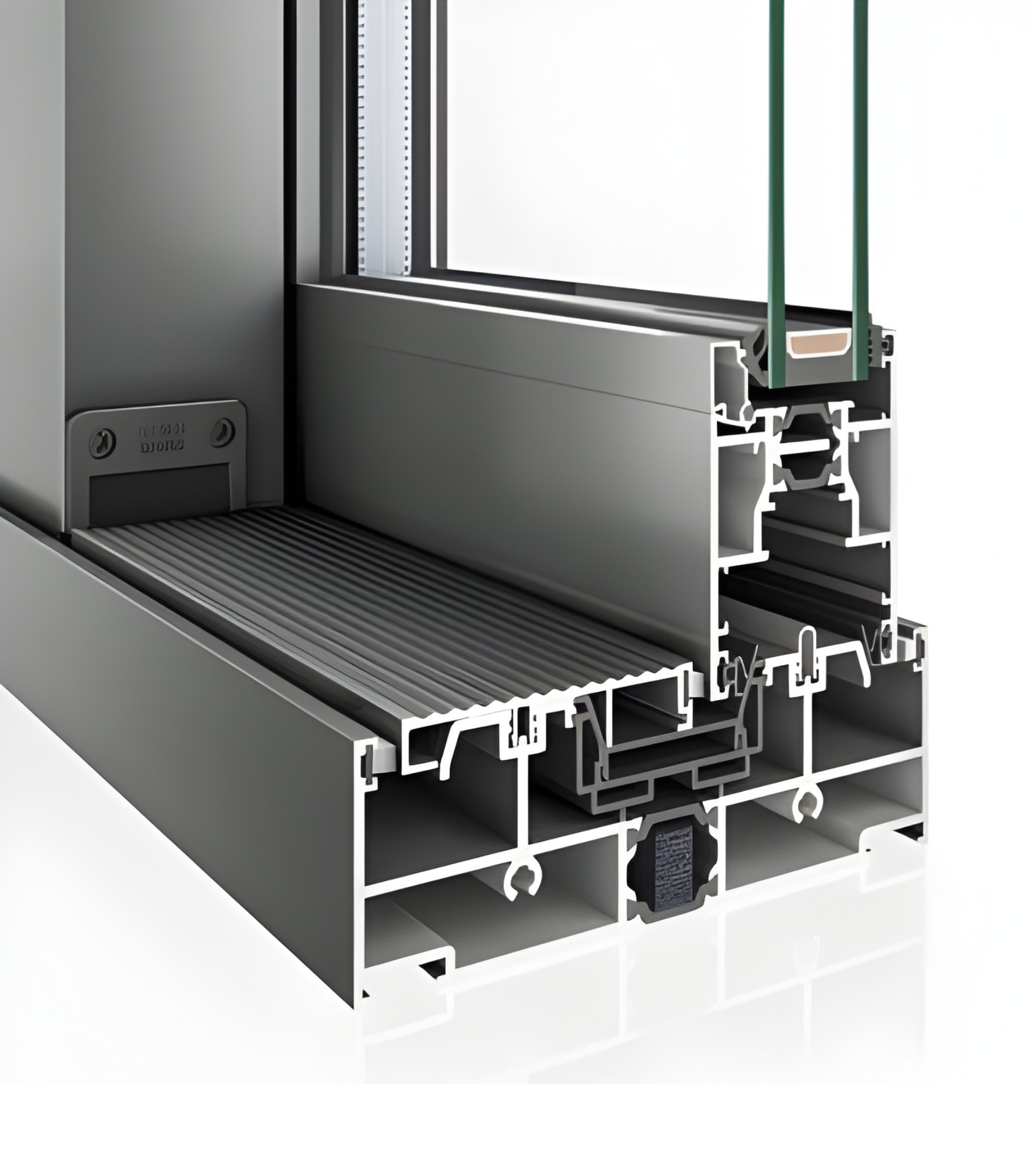

Features Partition and Insulation Design, Wind Pressure Resistance, Excellent Soundproofing and Thermal Insulation.

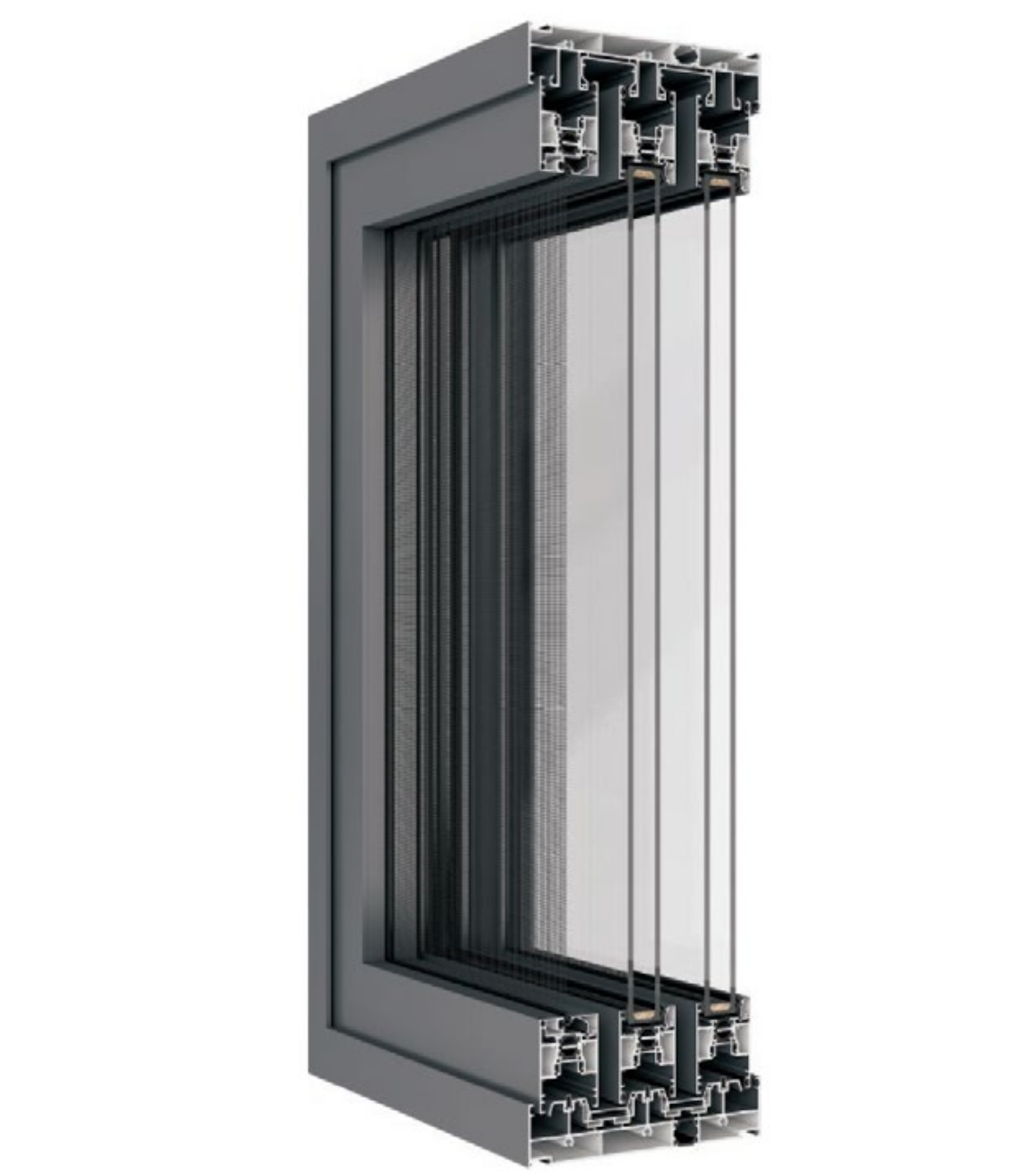

Optional Two-Track/Three-Track Solutions, with
Option for Integrated Screen Door Design.

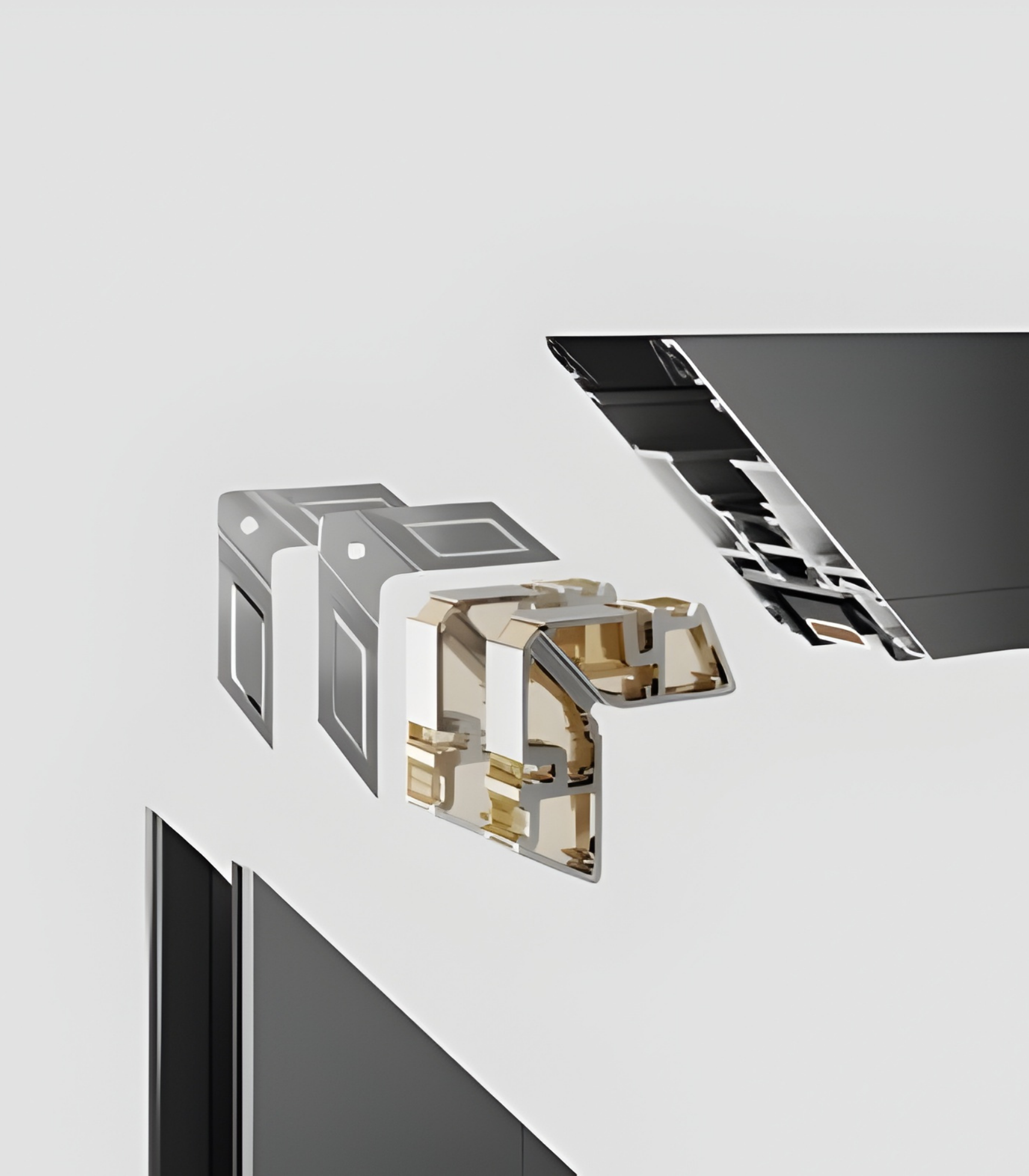

Sliding Hardware System with Optional Professional Anti-Theft Accessories.

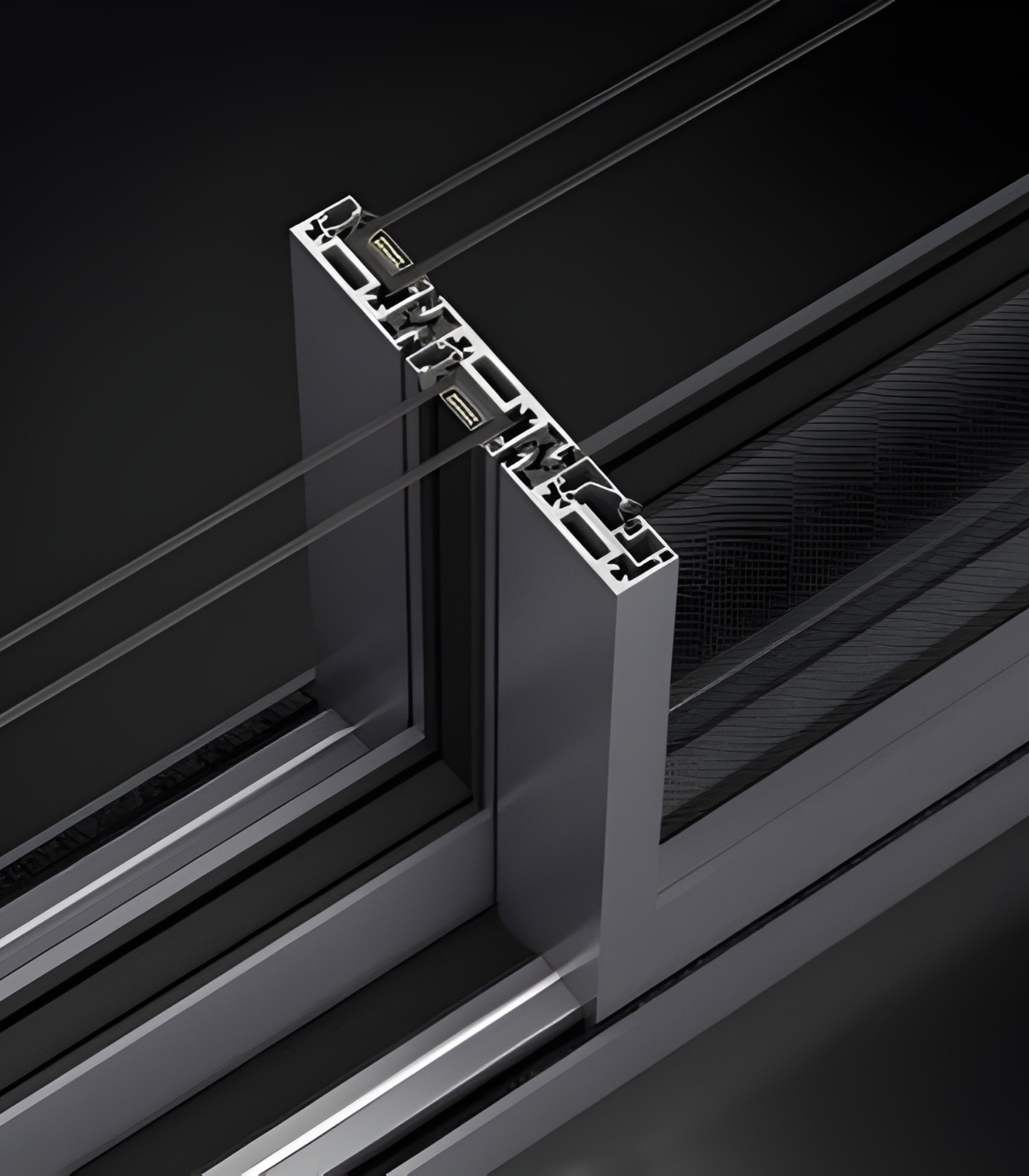

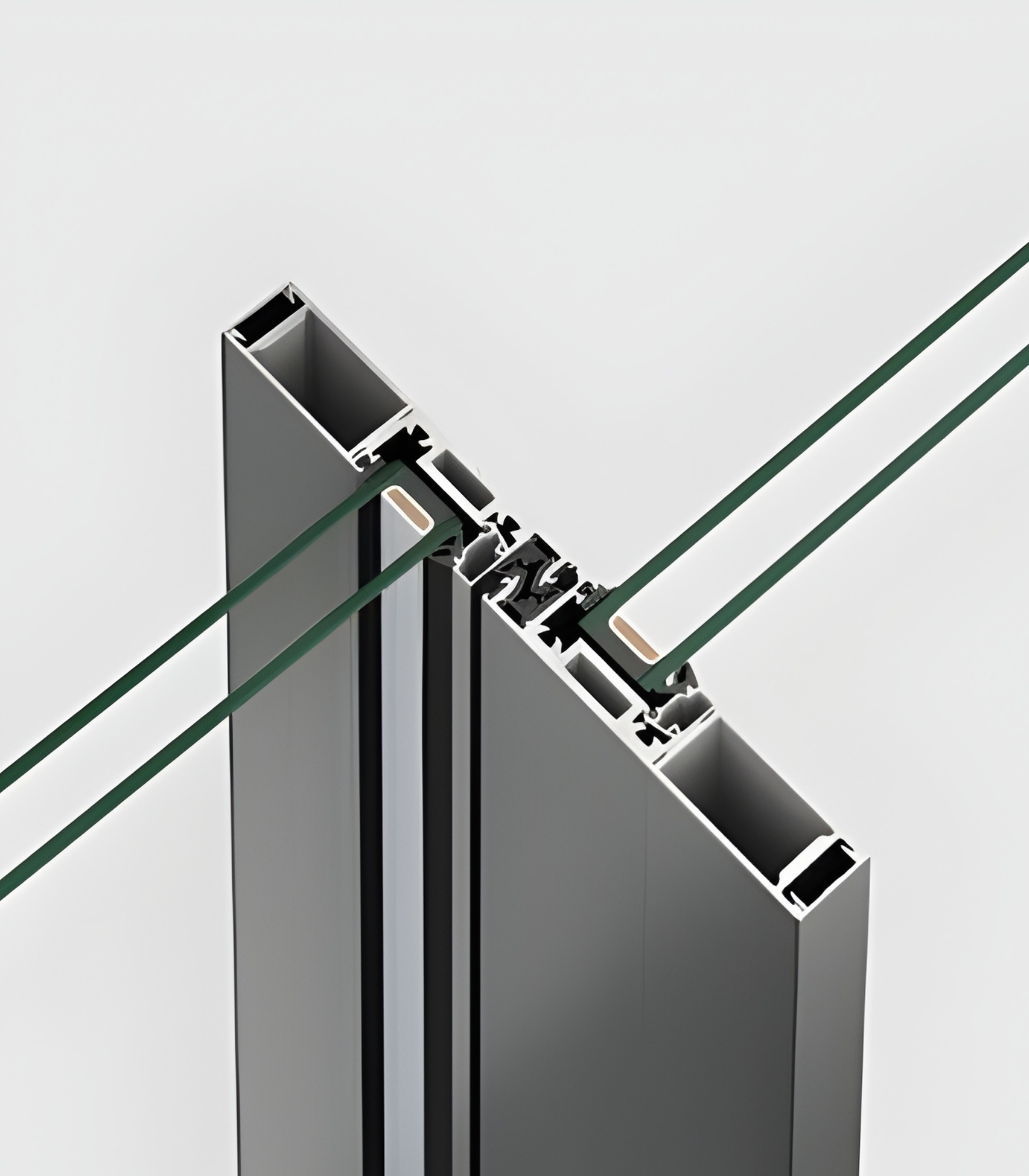

Ultra-Narrow Glazing Bead Design, Expansive
View and Space.

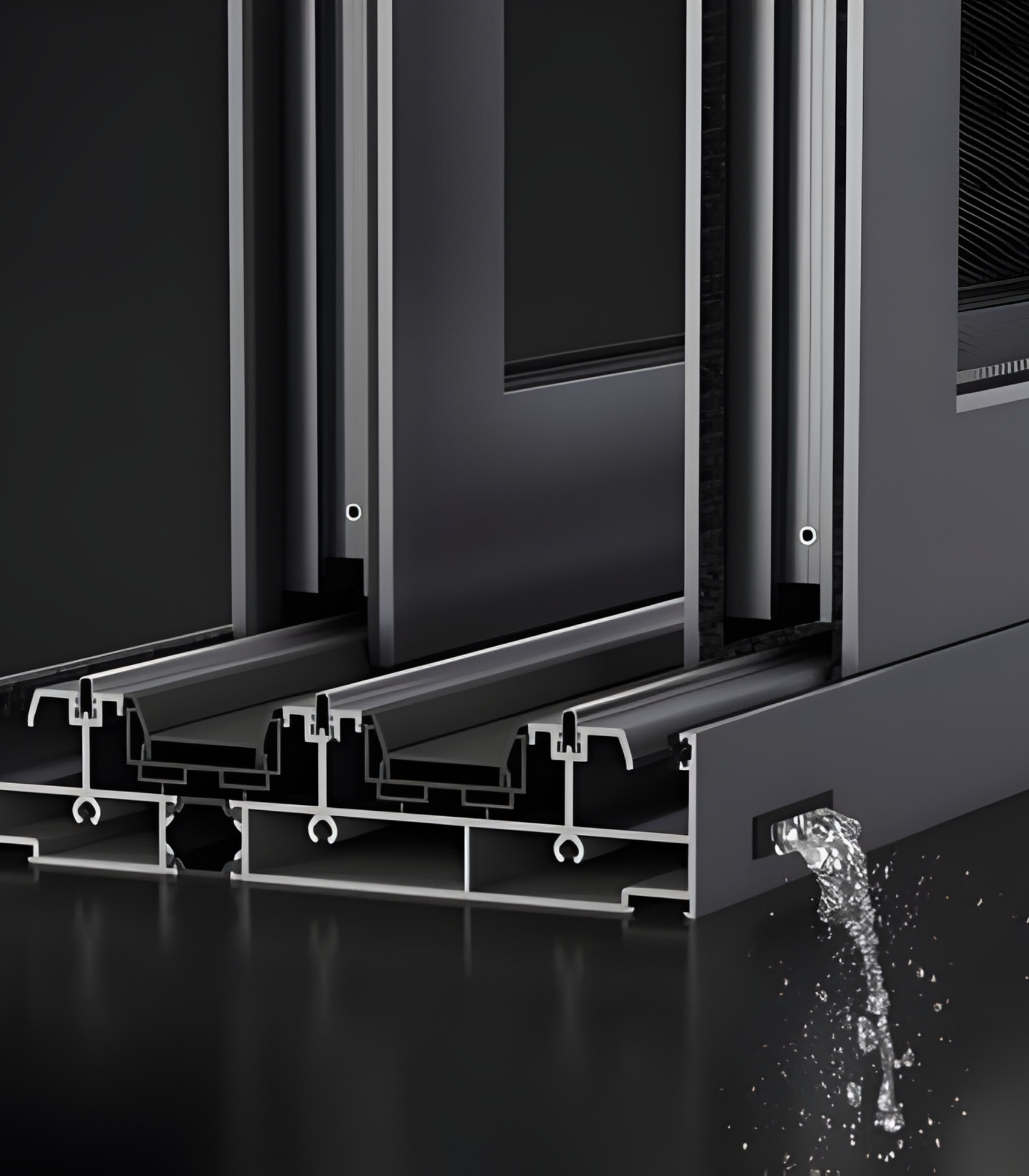

Concealed Drainage, Engineered to Prevent Leakage
Choose among color options inspired by the elements,
with the option to split interior and exterior colors
Factory glazed for durable! and convenient installation Performance.
Expansive glass with up to 6 panels, widths up to 6′ per panels.
Specialty Glass Options
FROSTED
OBSCURE
BLACK TINT
GRAY TINT
Color
Premium Black
Pure White
Vintage Brown
Classic Grey
Luxury Silver
Teak Wood
Technical parameters
Specifications
Inches
Profile Wall Thickness
0.0790 in
Compatible Glass
1.1810 in
Visible Width – Frame
1.5750 in
Visible Width – Top Rail
1.9690 in
Visible Width – Bottom Rail
1.9690 in
Visible Width – Glass Panel – Sash profile
2.9920 in
Visible Width – Glass Panel – Lock stile
1.1020 in
Profile Width – Two-Track
5.9060 in
Profile Width – Three-Track
8.8580 in
Profile Width – Four-Track
11.8110 in
screens
Retractable screens are available for Modern Swinging doors and Multi-Slide doors. A sliding screen is available for the Modern Sliding door.
Screens Features
1. Slim screen frame designed to preserve sightlines and maximize daylight openings
2. Optional retractable screen system for swinging and multi-slide doors, featuring high-transparency mesh for unobstructed views
3. Premium high-visibility mesh for enhanced clarity and airflow
4. Sliding screen option available for sliding door systems, engineered for smooth operation and durability
5. Innovative latch system with interior color-matched finish for a clean, cohesive look

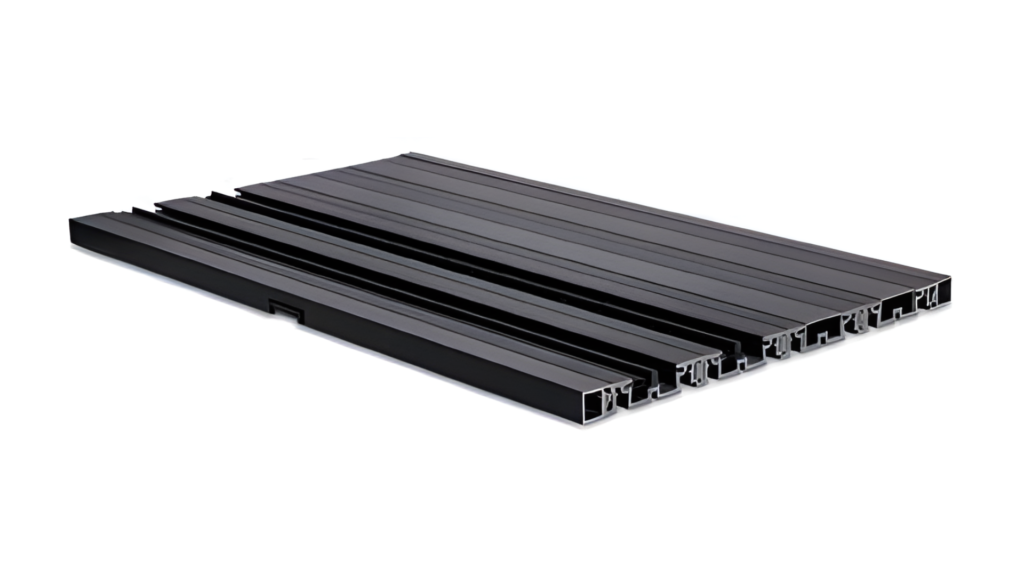

sills
Every detail of the ViewLux system is thoughtfully engineered, including the sill design. We offer flush sill options for both mild and demanding weather conditions, as well as a performance sill solution for applications where a recessed installation is not feasible.
Multi-Slide Options

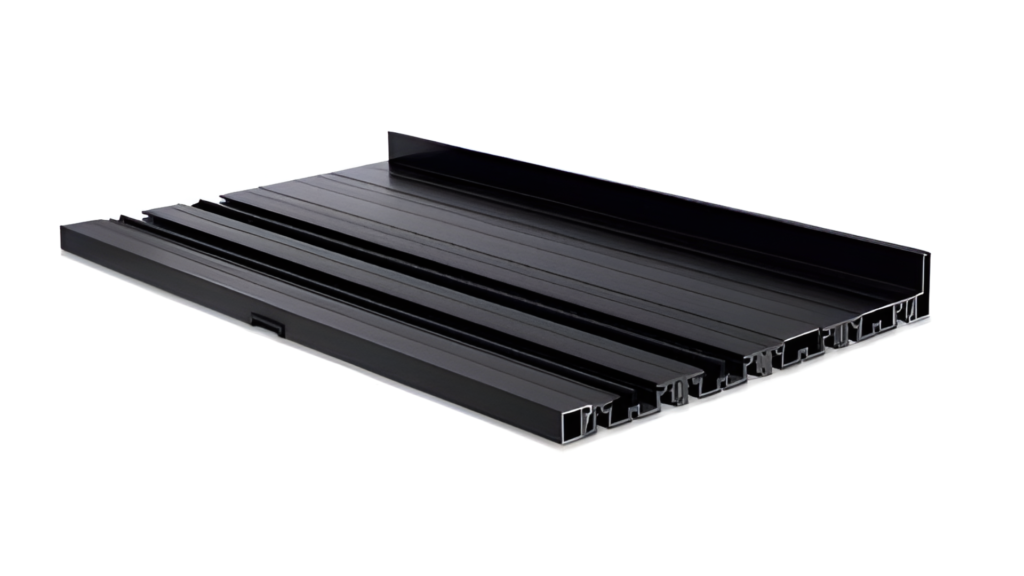

Flush Sill

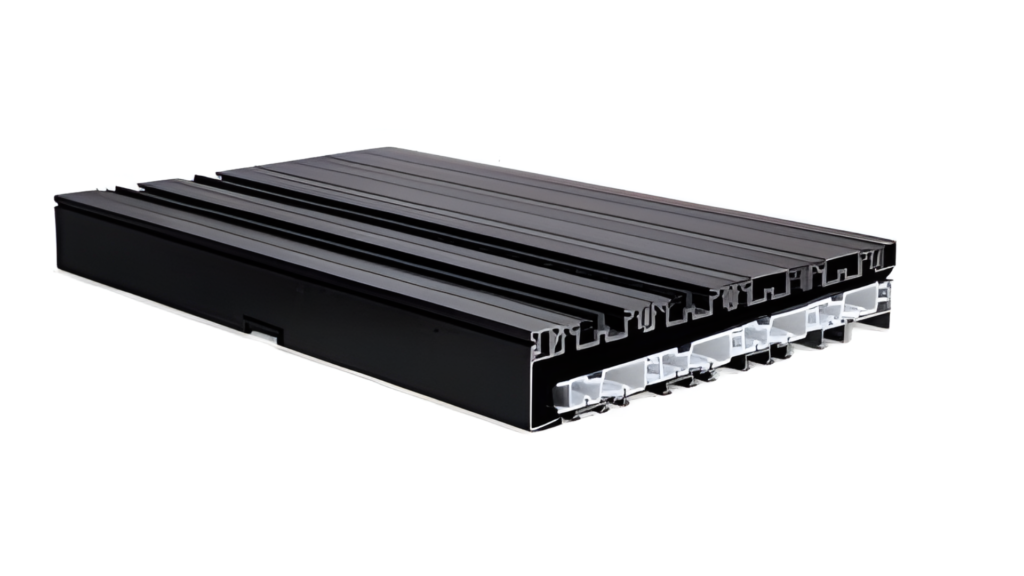

Performance Sill
