VLX 100

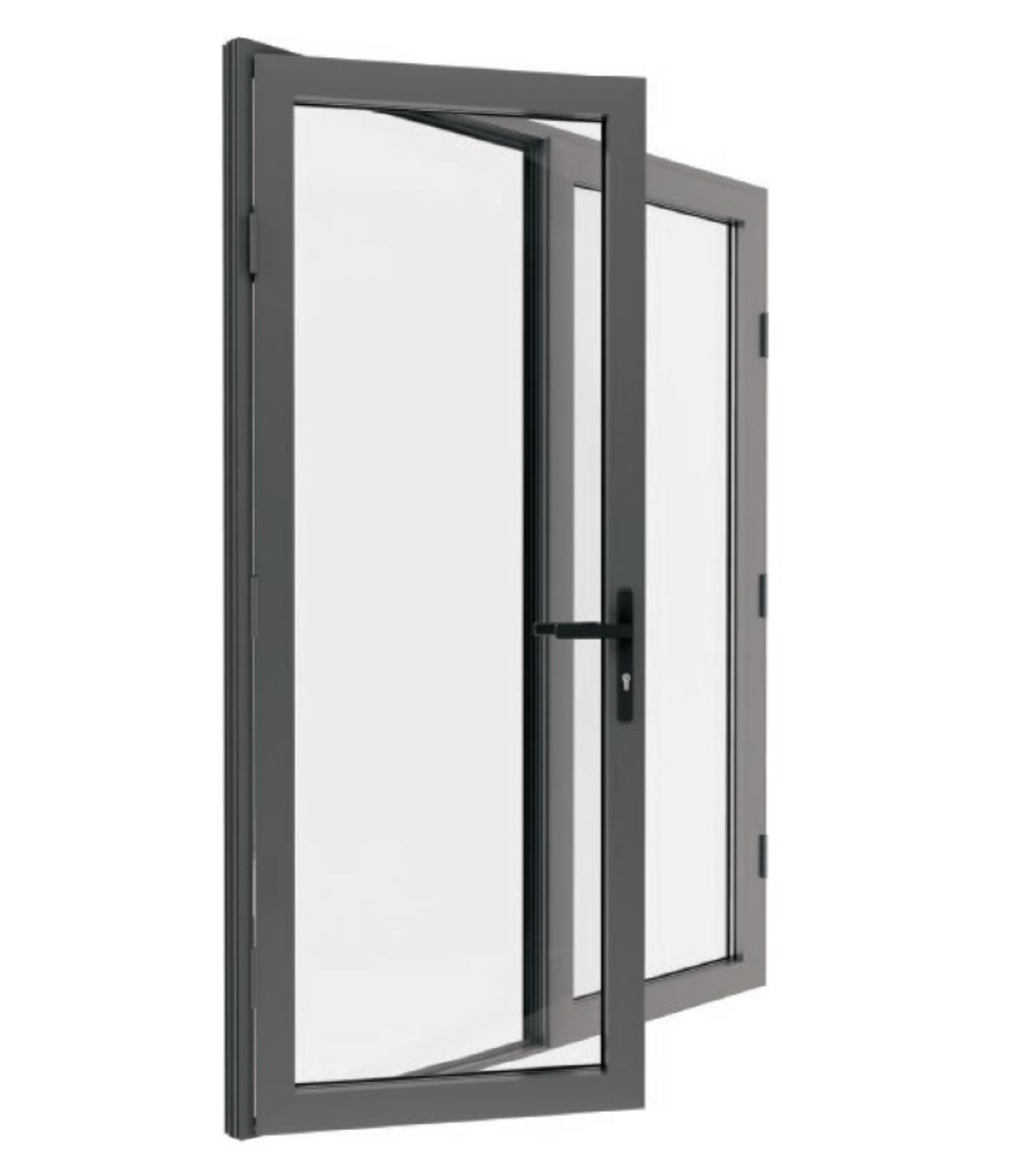

Double swing

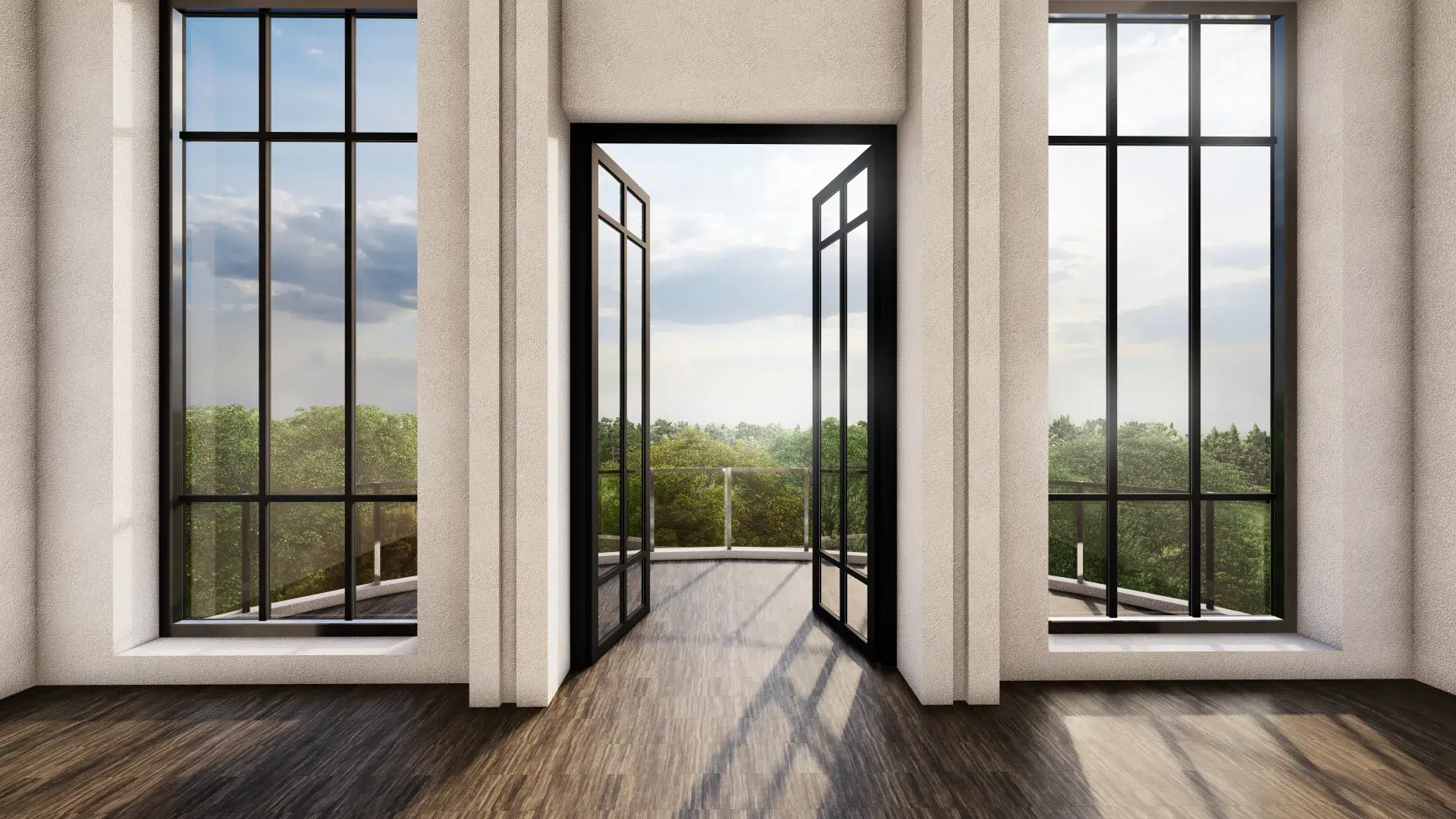

High-end Aluminum framing offers a modern take on timeless Swing Doors. Once reserved for more traditional architecture, the multi-pane framing complements contemporary architecture .The double-door design creates a spacious and flowing entrance to your outdoor patio.
water proof
Heat Insulation
Prevent Mist
Airtightness
Sound Lock
Wind
Resistance
Detailed Images
Product Features
Features Partition and Insulation Design, Wind Pressure Resistance, Excellent Soundproofing and Thermal Insulation.

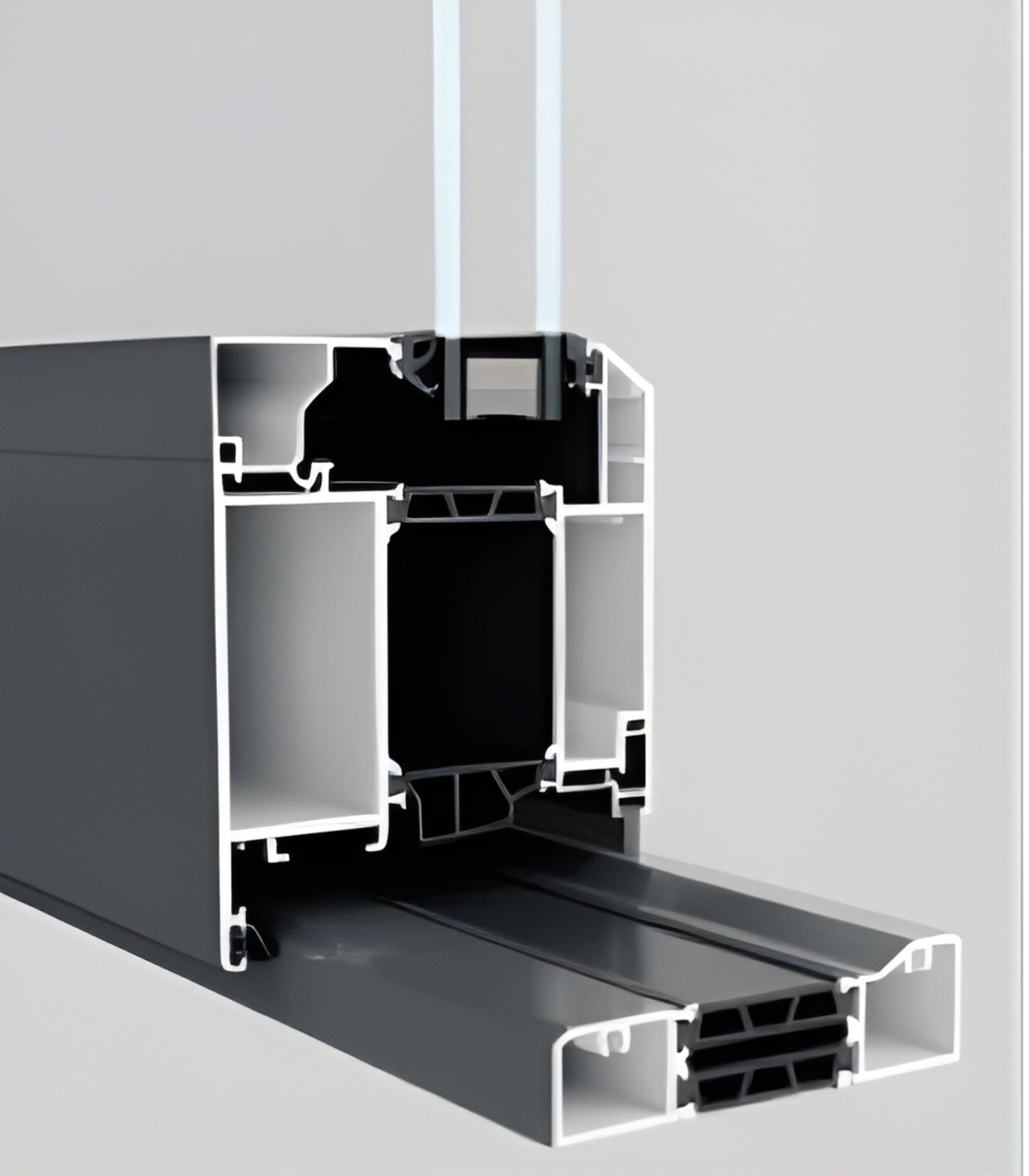

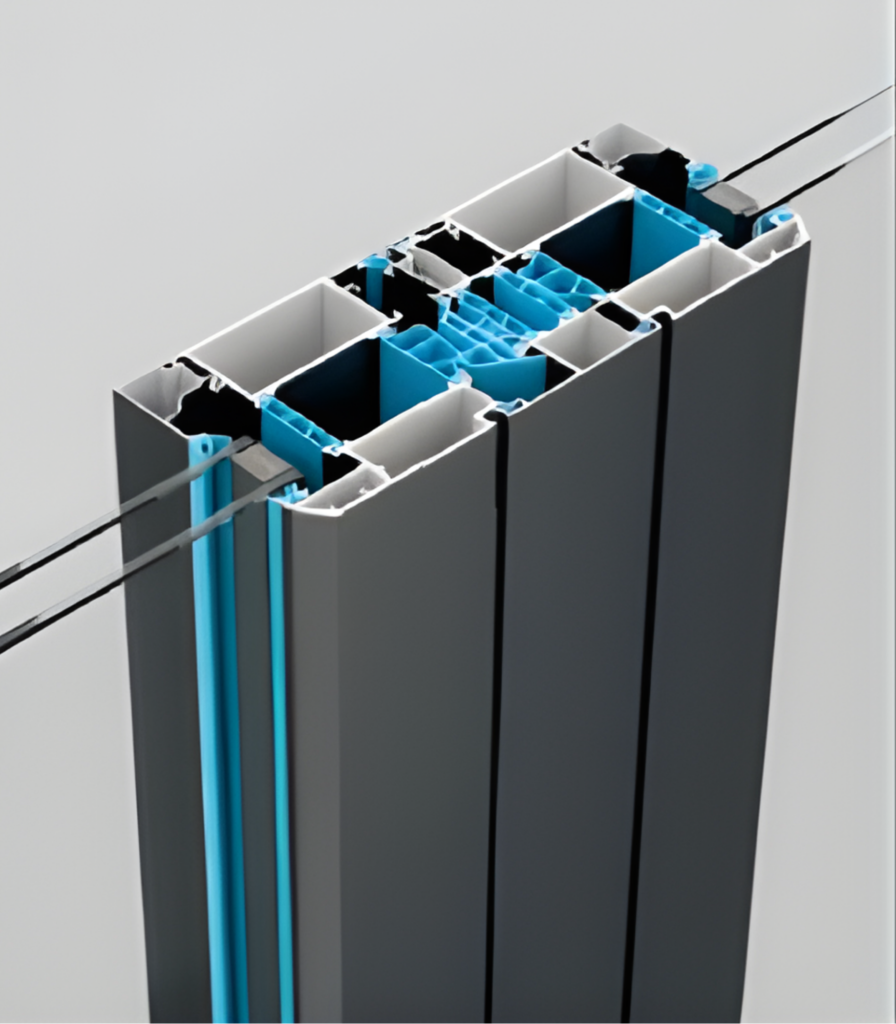

Thermal Break Aluminum Frame With polyamide thermal break system
To enhances insulation by reducing heat transfer.
3-Point Locking System enhanced security by Locking the door at
multiple points along the frame.
High-Quality Weather Strips for Superior Sealing improves insulation,
preventing air and water infiltration, which enhances overall energy
efficiency and durability.
Adjustable Hinges for Smooth Operation for precise alignment and
flexibility, the adjustable hinges ensure smooth opening and closing.
Low Profile Bottom Sill

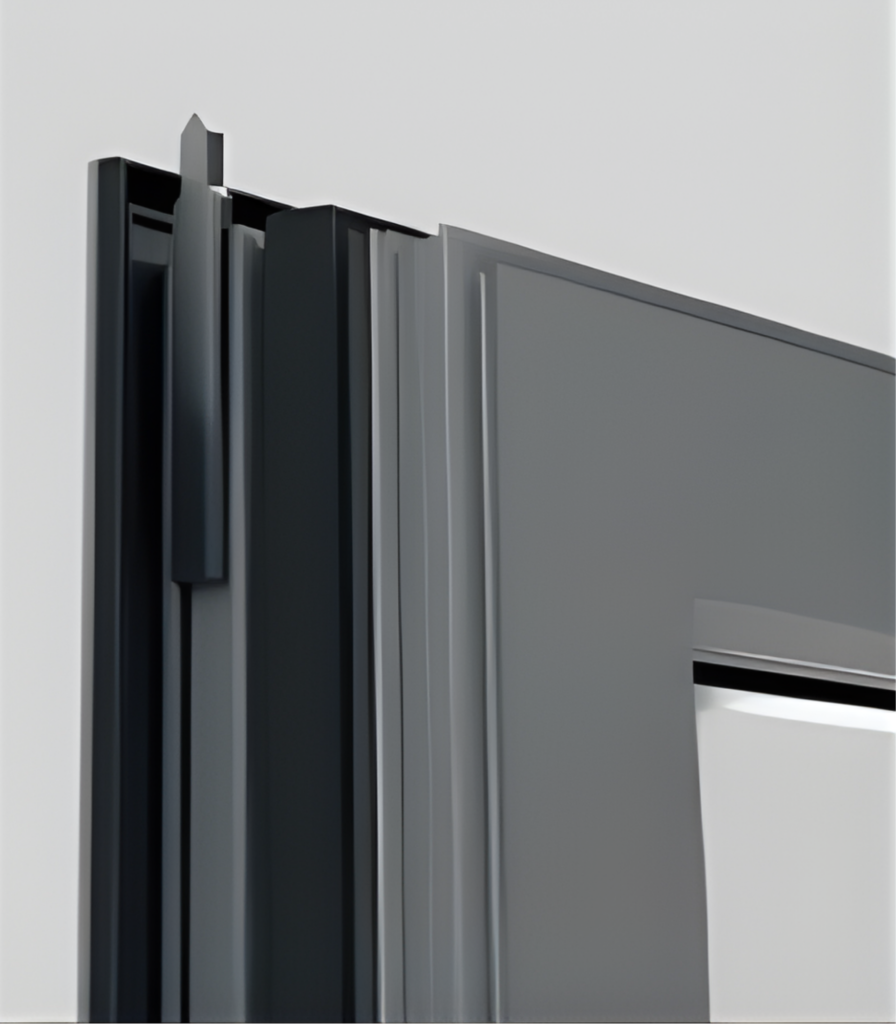

Stainless Steel Shoot Bolt
High Resisting Interlock
Specialty Glass Options
FROSTED
OBSCURE
BLACK TINT
GRAY TINT
Color
Premium Black
Pure White
Vintage Brown
Classic Grey
Luxury Silver
Teak Wood
Technical parameters
Specification
inches
Profile Wall Thickness:
0.0710 in
Compatible Glass:
1.1811 in
Visible Width – Frame:
2.7560 in
Visible Width – Glass Panel:
4.2130 in
Profile Width:
3.1500 in
screens
Retractable screens are available for Modern Swinging doors and Multi-Slide doors. A sliding screen is available for the Modern Sliding door.
Screens Features
1. Slim screen frame designed to preserve sightlines and maximize daylight openings
2. Optional retractable screen system for swinging and multi-slide doors, featuring high-transparency mesh for unobstructed views
3. Premium high-visibility mesh for enhanced clarity and airflow
4. Sliding screen option available for sliding door systems, engineered for smooth operation and durability
5. Innovative latch system with interior color-matched finish for a clean, cohesive look
sills
Every detail of the ViewLux system is thoughtfully engineered, including the sill design. We offer flush sill options for both mild and demanding weather conditions, as well as a performance sill solution for applications where a recessed installation is not feasible.
Swinging Options
Low profile Threshold
